امپلی فایر 4 کانال دیجیتال حرفه ای ادیو داینامیک امریکا 500w

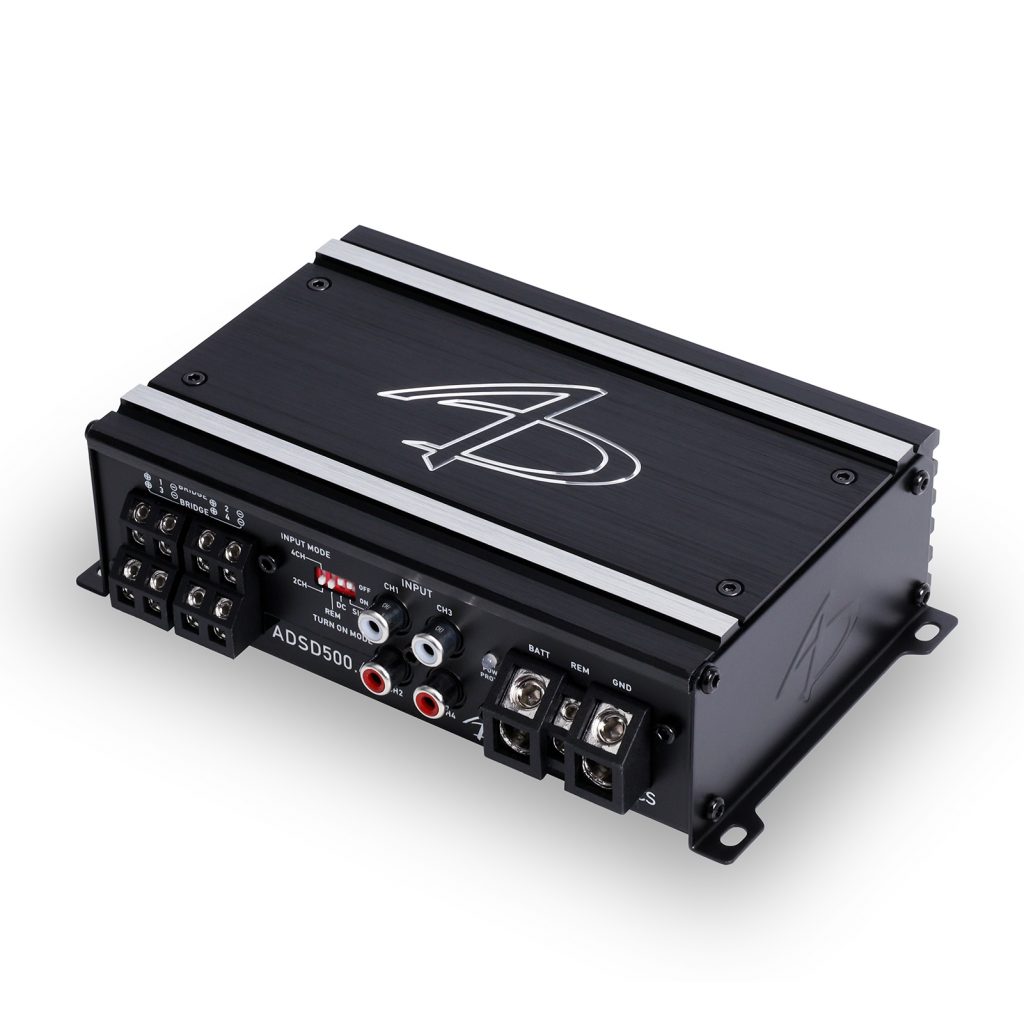

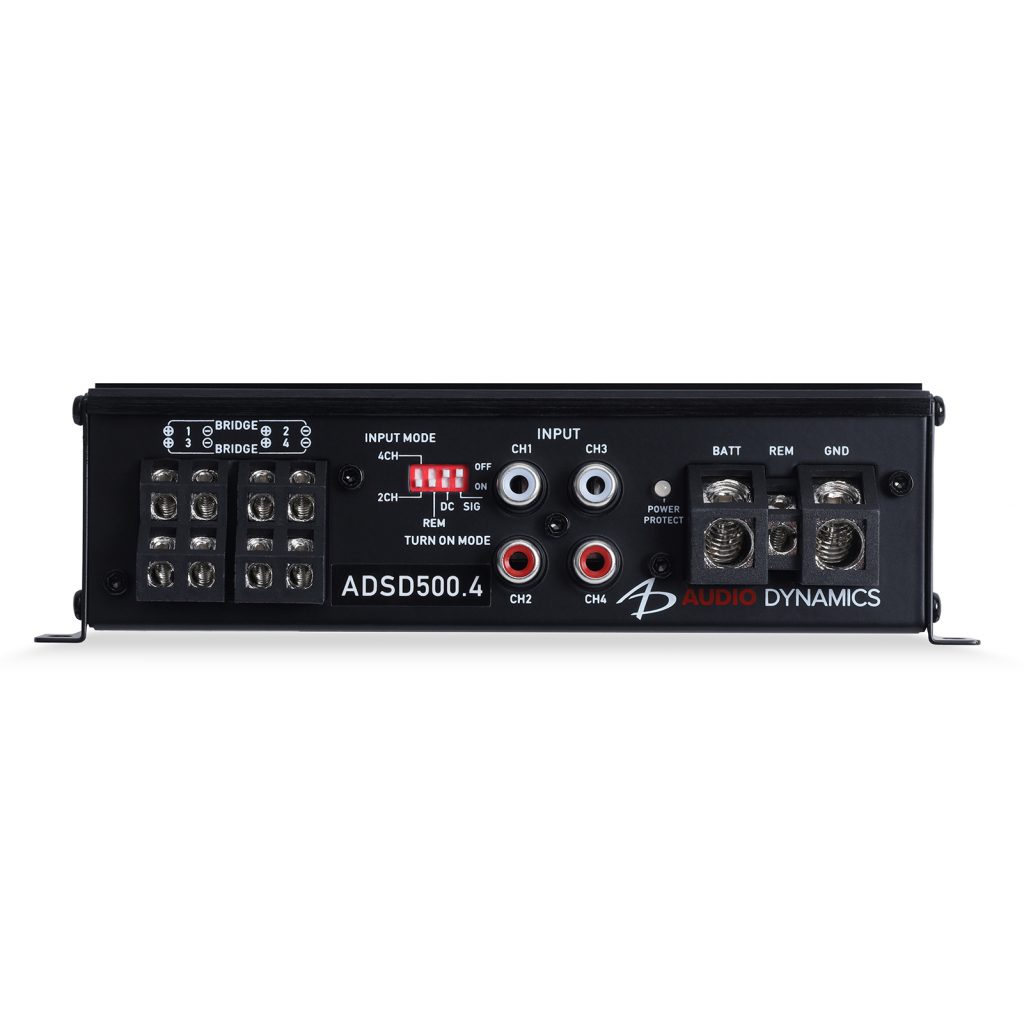

ADSD500.4
- 500W 4-Channel Amplifier
- Full Range Class D
- Ultra Small Size for Easy Installation
- Infineon Chipset Drive Technology
- Controls Under Reversible Top Cover
- Click-in-Place Crossover Controls
- Clip Indicator by Level Controls
- Band Pass Capable
- Auto Turn On (DC/Signal)
- 2ch/4ch Input Selector
- High/Low Level RCA Inputs
- Audio Precision Quality Control Verification
- Engineered in U.S.A
-
Description
Continuous Power 75W x 4 @ 4 ohms 14.4V Supply Voltage 135W x 4 @ 2 ohms Bridged 270W x 2 @ 4 ohms Frequency Response 10Hz – 27KHz Input Sensitivity 200mV t- 6V (low level) 500mV – 10V (high level into RCA connectors) Recommended Fuse Ratings 30A @ 4 ohms / 50A @ 2 ohms Filter Modes High Pass – Low Pass – Band Pass High Pass Filter Ch 1+2: 20Hz – 5KHz At 12dB/Oct Slope Ch 3+4: 20Hz – 5KHz Linkwitz-Riley Low Pass Filter Ch 1+2: 50Hz – 5KHz At 12dB/Oct Slope Ch 3+4: 50Hz – 5KHz Linkwitz-Riley Detented Filter Potentiometers 41 Click-in-Place Frequencies Height 2 in / 50.3 mm Width 7.0 in / 178 mm (includes mounting feet) Depth 4.5 in / 114.3 mm (includes terminals) Net Weight lb / kg
